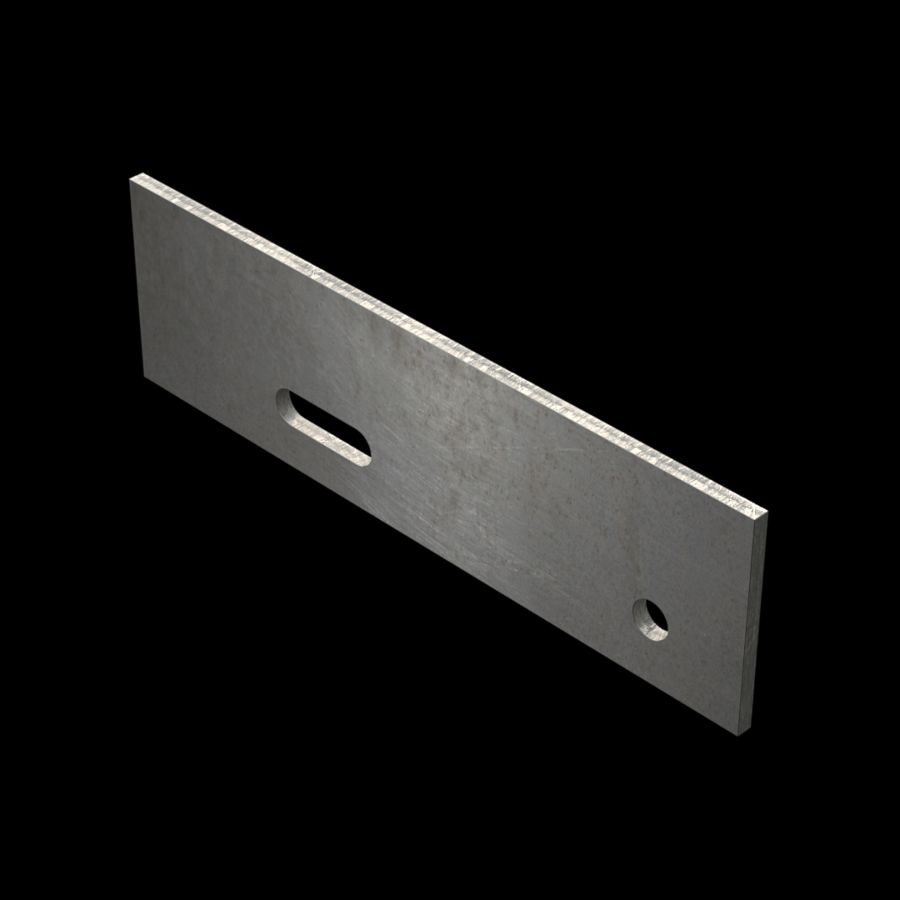

McNICHOLS® Accessories Carrier Plates - Bar Grating, Stainless Steel, Type 304, 3/16" Gauge (.1875" Thick), CP-BG-925 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 8-9/16" Width), Punched with a Mounting Slot and Bolt Hole

Due to limitations and inconsistencies of digital displays, the rendering above is a representation of the raw materials. Actual products may differ slightly in appearance.

McNICHOLS® Accessories

Carrier Plates - Bar Grating, Stainless Steel, Type 304, 3/16" Gauge (.1875" Thick), CP-BG-925 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 8-9/16" Width), Punched with a Mounting Slot and Bolt Hole

McNICHOLS® Accessories, Carrier Plates - Bar Grating, Stainless Steel, Type 304, Mill Finish, 3/16" Gauge (.1875" Thick), CP-BG-825 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 8-9/16" Width), Punched with a Mounting Slot and Bolt Hole, Fits Stainless Steel Bar Grating with 1" Height Rectangular Bearing Bars and 1-1/4" Height Rectangular Bearing Bars

ITEM 6080308999 - 2-1/2" x 8-9/16" - In-Stock!

Please Request Quote

Qty

Subtotal

Qty

Subtotal

SPECIFICATIONS

Overview

Ordering

Charts

Tables

SPECIFICATIONS

Overview

Ordering

Charts

Tables

Specifications

Item Number 6080308999	6080308999
Product Line Accessories	Accessories
Accessory Type Carrier Plates - Bar Grating	Carrier Plates - Bar Grating
Primary Material Stainless Steel (SS)	Stainless Steel (SS)
Alloy, Grade or Type Type 304 (304)	Type 304 (304)
Material Finish Mill Finish	Mill Finish
Thickness 3/16" Thick (.1875" Thick)	3/16" Thick (.1875" Thick)
Accessory Profile CP-BG-925 Bar Grating Stair Tread Carrier (2-1/2" Height x 8-9/16" Width) Punched with a Mounting Slot and Bolt Hole	CP-BG-925 Bar Grating Stair Tread Carrier (2-1/2" Height x 8-9/16" Width) Punched with a Mounting Slot and Bolt Hole
Height 2-1/2"	2-1/2"
Width 8-9/16"	8-9/16"
Slot Size (Width x Height) 1-7/16" x 7/16"	1-7/16" x 7/16"

Bolt Hole Size (Diameter) 7/16"	7/16"
Ctr of Slot/Bolt Hole to Top Edge 1-3/4"	1-3/4"
Ctr of Slot/Bolt Hole to Btm Edge 3/4"	3/4"
Ctr of Slot to Ctr of Bolt Hole 4-1/2"	4-1/2"
Ctr of Slot to Nearest Outside Edge 1-5/8"	1-5/8"
Ctr of Bolt Hole to Nearest Outside Edge 1-1/8"	1-1/8"
Compatible With Fits Stainless Steel Bar Grating with 1" Height Rectangular Bearing Bars and 1-1/4" Height Rectangular Bearing Bars	Fits Stainless Steel Bar Grating with 1" Height Rectangular Bearing Bars and 1-1/4" Height Rectangular Bearing Bars
Weight 2.35 Lbs./Pair	2.35 Lbs./Pair
Product Form Pair	Pair
CAD Drawings PDF - Download Now DWG - Please Log In	PDF - Download Now DWG - Please Log In
Sizes (Height x Width) 2-1/2" x 8-9/16"	2-1/2" x 8-9/16"

Overview

McNICHOLS provides a wide selection of Accessories specifically for our product offerings, including Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging, and more. Accessories complete Hole Product designs with a clean finish, minimal guesswork, and optimal long-term results. Please allow us to start and finish your amazing design with McNICHOLS® Product Accessories!
