INTRODUCING ONLINE ORDERING

Register and instantly checkout with select sizes of McNICHOLS® Hole Products.

McNICHOLS® Trench Drain

System, POLYCAST® Series 600, Polymer Concrete, Kit 2 - 40-Linear Feet

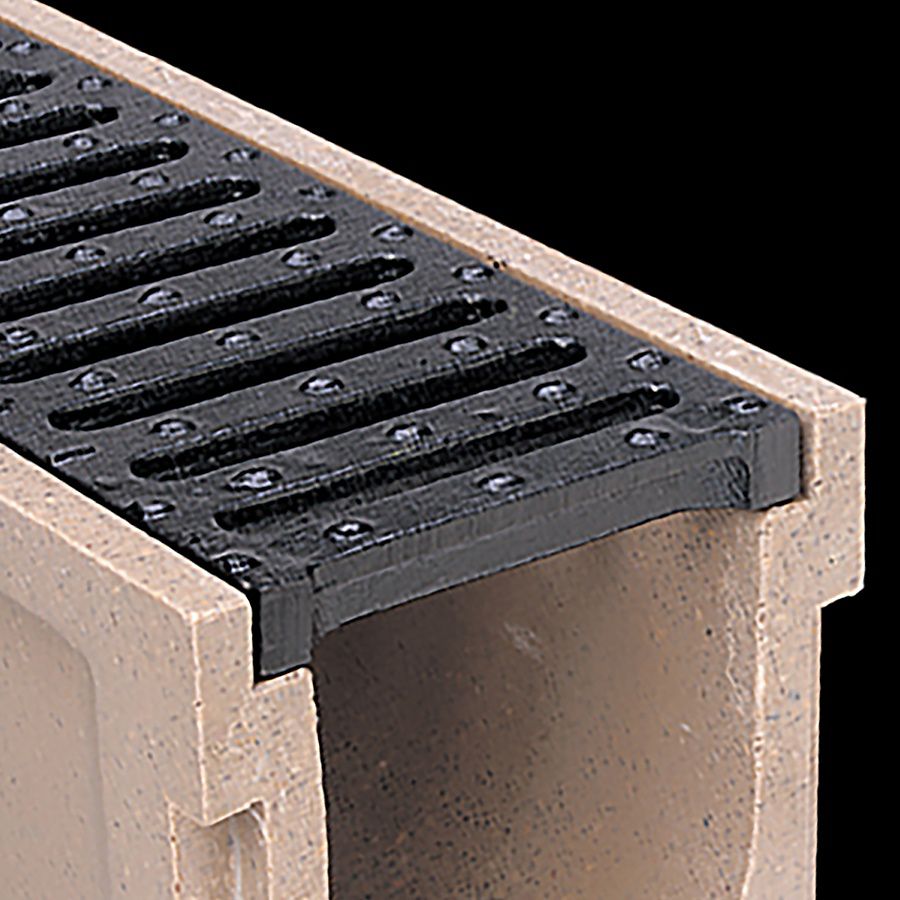

McNICHOLS® Trench Drain, System, POLYCAST® Series 600, Polymer Concrete, Kit 2 - 40-Linear Feet, Includes 10 (48" Length) Presloped Channel Sections, 20 Round-End Slotted Cast Iron Grates, One Inlet End Cap, One Outlet End Cap, 12 Installation Alignment Chairs, 21 Grate Locking Devices (Optional Heavy-Duty Hardnose Frames Available Separately)

ITEM F3PC288840 - Kit In-Stock!




Please Request Quote
To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number F3PC288840
Product Line Trench Drain
Kit Name & Type POLYCAST® System
Primary Material Polymer Concrete (PC)
Kit Item & Length Kit 2 - 40 Linear Feet
Presloped Channel Sections (Qty) 10
Channel Section Length 48"
Slotted Surface Grates (Qty) 20
Grate Length 24"
Inlet End Cap (Qty) 1
Outlet End Cap (Qty) 1
Installation Alignment Chairs (Qty) 12
Grate Locking Devices (Qty) 21
Weight 900.00 Lbs./Kit
POLYCAST® Trench Drain Info Sheet View
Product Form Kit

Overview

McNICHOLS POLYCAST® Presloped Trench Drain Systems are designed for indoor and outdoor residential, commercial, and industrial applications. POLYCAST® Trench Drain channels are made of a stronger-than-concrete precast polyester polymer concrete composite and are set in place prior to a slab pour. Our Systems are easy to install, durable, resistant to many chemicals, and ideal for environments with extreme temperatures. The system is capped off with lockable, yet removable round-end slotted surface grates.

Ordering

Content coming soon!

Charts

View McNICHOLS® Trench Drain Resources below!



Tables

Content currently unavailable.
