McNICHOLS® Trench Drain

System, POLYCAST ®, Polymer Concrete, Kit 1 - 20 Linear Feet

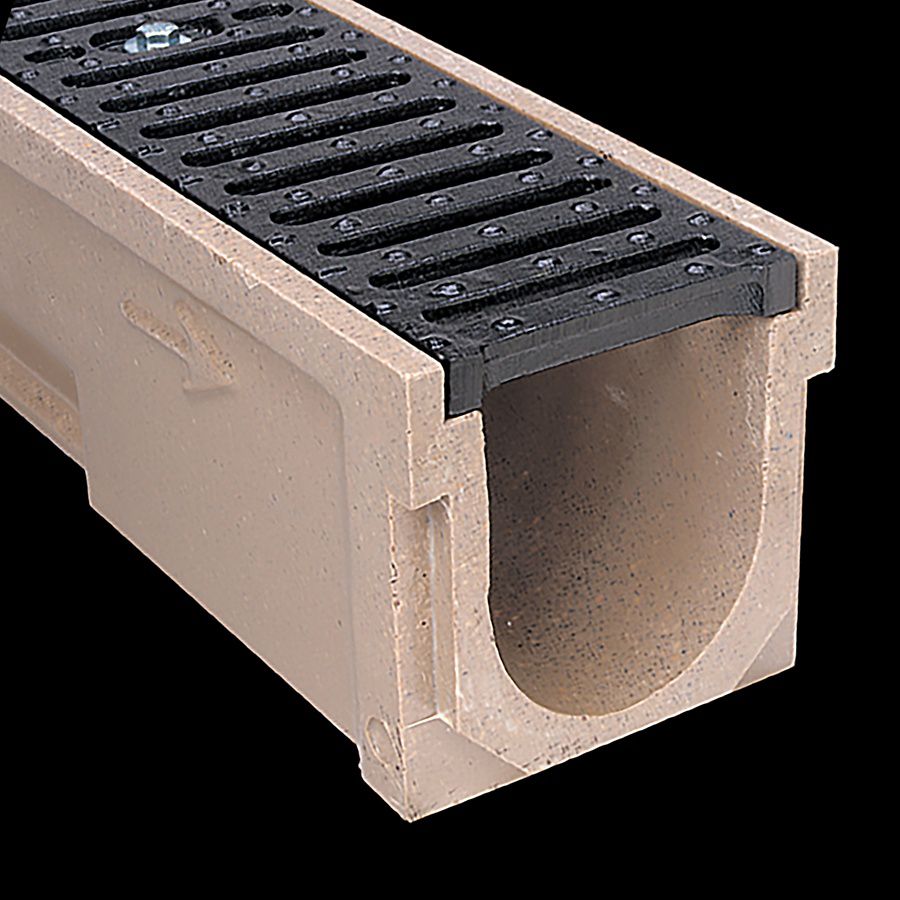

McNICHOLS® Trench Drain, System, POLYCAST® Series 600, Polymer Concrete, Kit 1 - 20-Linear Feet, Includes 5 (48" Length) Presloped Channel Sections, 10 Slotted Cast Iron Grates, 1 Inlet End Cap, 1 Outlet End Cap, 7 Installation Alignment Chairs, 11 Grate Locking Devices (Optional Heavy-Duty Hardnose Frames Available Separately)

ITEM F3PC188820 - Kit




Please Request Quote
To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number F3PC188820
Product Line Trench Drain
Kit Name & Type POLYCAST® System
Primary Material Polymer Concrete (PC)
Kit Item & Length Kit 1 - 20 Linear Feet
Presloped Channel Sections (Qty) 5
Channel Section Length 48"
Slotted Surface Grates (Qty) 10
Grate Length 24"
Inlet End Cap (Qty) 1
Outlet End Cap (Qty) 1
Installation Alignment Chairs (Qty) 7
Grate Locking Devices (Qty) 11
Weight 450.0 Lbs./Kit
POLYCAST® Trench Drain Info Sheet View
Product Form Kit

Overview

McNICHOLS POLYCAST® Presloped Trench Drain Systems are designed for indoor and outdoor residential, commerical and industrial applications. POLYCAST® Trench Drain channels are made of a stronger-than-concrete precast polyester polymer concrete composite and are set in place prior to a slab pour. Our Systems are easy to install, durable, resistant to many chemiacals, and ideal for environments with extreme temperatures. The system is capped off with a removable slotted surface grate.

Specifying/Ordering

The following selections are important considerations to help you choose the right McNICHOLS® Trench Drain product for your project or application. Please specify:

1

Application

Product applications/uses include displays, exhibits, fixtures, partitions, cabinet inserts, guards, furniture, building facades, infill panels, screening, sign panels, filters, baskets, ventilation, security enclosures, and more. We invite you to browse Perforated Metal applications in our Product Gallery.

2

Hole Type

Choose from a wide variety of Round, Square, Slotted, Hexagonal, or Designer Perforated hole types.

3

Primary Material / Product Finish

Select primary material type including Aluminum, Carbon Steel, Galvanized Steel, Stainless Steel, or Plastic, taking into consideration climate or environmental realities. Inventory is typically “mill finish” unless otherwise specified. We provide our full selection of materials in the Materials, Finishes, Gauges/Thicknesses section.

4

Material Guage / Thickness

Decide on material gauge number or thickness in inches. The Gauges and Weights Chart offers additional information.

5

Hole Pattern

Identify hole size (diameter), hole type (shape), hole center (spacing) and hole arrangement (staggered, straight row, etc.), or Designer Perforated name/pattern.

6

Percent Open Area

Choose the percentage of open area desired in the Perforated Metal sheet or coil.

7

Margin / End Pattern

Specify solid margin preferences on width and/or length of sheet if required for your application. Most inventory 11 Gauge and lighter has minimum solid side margins running the length of the sheet and no end margins running the width of the sheet (material ends are sheared through). Sheets heavier than 11 Gauge typically have either a finished or unfinished pattern with corresponding end margins.

8

Product Size, Form & Quantity

Identify product size(s), form (typically supplied in sheets), and quantity desired, including cut-to-size pieces.

9

Special Requirements

Specify any requirements for special cut-to-size pieces, margin or edge treatments, finishing, leveling, fabrication, non-standard tolerances, etc.

10

Accessories

Determine if Perforated Metal Accessories such as Angle, Flat Bar or U-Edging framing solutions are required for your application.
