  4. McNICHOLS® Stair Treads Bar Grating, Swage-Locked, Stair Tread, Rectangular Bar, GAL-150, 19-S-4 Spacing, Aluminum, Alloy 6063-T6, 1-1/2" x 3/16" Rectangular Bars, Smooth Surface, Corrugated 90° Angle Nosing, CP-BG-1230 Bar Grating Stair Tread Carrier Plates Attached, 80% Open Area
McNICHOLS® Stair Treads Bar Grating, Swage-Locked, Stair Tread, Rectangular Bar, GAL-150, 19-S-4 Spacing, Aluminum, Alloy 6063-T6, 1-1/2" x 3/16" Rectangular Bars, Smooth Surface, Corrugated 90° Angle Nosing, CP-BG-1230 Bar Grating Stair Tread Carrier Plates Attached, 80% Open Area, 670231T336
McNICHOLS® Stair Treads Bar Grating, Swage-Locked, Stair Tread, Rectangular Bar, GAL-150, 19-S-4 Spacing, Aluminum, Alloy 6063-T6, 1-1/2" x 3/16" Rectangular Bars, Smooth Surface, Corrugated 90° Angle Nosing, CP-BG-1230 Bar Grating Stair Tread Carrier Plates Attached, 80% Open Area, 670231T336

McNICHOLS® Stair Treads

Bar Grating, Swage-Locked, Stair Tread, Rectangular Bar, GAL-150, 19-S-4 Spacing, Aluminum, Alloy 6063-T6, 1-1/2" x 3/16" Rectangular Bars, Smooth Surface, Corrugated 90° Angle Nosing, CP-BG-1230 Bar Grating Stair Tread Carrier Plates Attached, 80% Open Area
McNICHOLS® Bar Grating, Swage-Locked, Stair Tread, Rectangular Bar, GAL-150, 19-S-4 Spacing, Aluminum, Alloy 6063-T6, Mill Finish, 1-1/2" Height x 3/16" Thick Rectangular Bearing Bars, Spaced 1-3/16" on Center with 1" Clear Space Between Bearing Bars, Smooth Surface, Bearing Bars Run Parallel to Length of Bar Grating Stair Tread, Cross Bars Spaced 4" on Center, Corrugated 90° Angle Nosing with Equal Legs (1-1/4" Leg x 1-1/4" Leg) and CP-BG-1230 Bar Grating Stair Tread Carrier Plates - Pair (3" Height x 12-1/8" Width) Attached, 80% Open Area

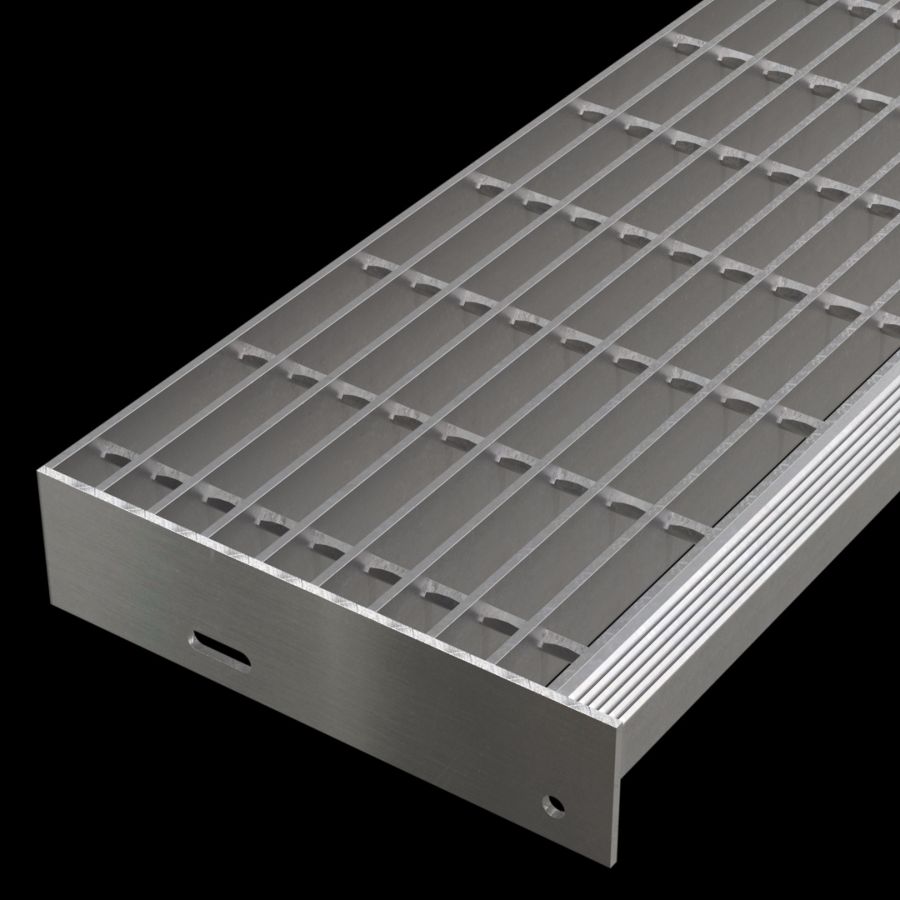

ITEM 670231T336 - 12-1/8" x 36"




To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 670231T336
Product Line Stair Treads
Main Product Line Bar Grating
Construction Type Swage-Locked
Bearing Bar Shape Rectangular Bar
Series Type & Name Bar - GAL-150 (Swage-Locked)
Product Spacing 19-S-4
Primary Material Aluminum (AL)
Alloy, Grade or Type Alloy 6063-T6 (6063T6)
Material Finish Mill Finish
Bearing Bar Size & Shape 1-1/2" Height x 3/16" Thick Rectangular Bar
Bearing Bar Height 1-1/2"
Bearing Bar Thickness 3/16"
Bearing Bar Spacing 1-3/16" on Center
Clear Space Between Bearing Bars 1"
Product Surface Smooth
Bearing Bar Direction (Span) Parallel to Length of Tread
Cross Bar Size & Shape 3/8" Square Rod
Cross Bar Spacing 4" On Center
Nosing Type Corrugated 90° Angle Nosing
Nosing Dimensions (Width) Equal Legs (1-1/4" Leg x 1-1/4" Leg)
Carrier Plates Attached Yes
Carrier Plate Size CP-BG-1230 Bar Grating Stair Tread Carrier Plates - Pair (3" Height x 12-1/8" Width)
Carrier Plate Size Chart View
Percent Open Area 80%
Weight 15.20 Lbs./Tread
Product Form Tread
Sizes (Width x Length)
12-1/8" x 36"
Load Table View
Allowable Sizes View

Overview

McNICHOLS® Grating Stair Treads are assembled with the very best quality and craftsmanship available. Stair Treads are common in residential, industrial and architectural applications. Made from panels of Bar, Plank and Fiberglass Gratings, we are certain to have the right combination to meet your project requirements. We have several Bar Grating construction types (Standard-Duty Welded, Heavy-Duty Welded, Swage-Locked, Press-Locked) pre-assembled and in stock or we can fabricate your order quickly from full-sized panels in inventory. Bar Grating Treads are available in Aluminum, Carbon Steel, Powder Coated Carbon Steel, Galvanized Steel and Stainless Steel.

Our Stair Tread line of Hole Products also includes Aluminum, Carbon Steel, Galvanized Steel and Stainless Steel Plank Grating Treads in Plank, Heavy-Duty Plank or Extruded and Heavy-Duty Extruded Plank styles. We also supply a Stair Tread Plank item with a built-in shelf designed to accept Cast-Abrasive Nosing. McNICHOLS® carries the nation’s largest inventory of Safety Grating Stair Tread brand names like GRIP STRUT®, PERF-O GRIP®, TRACTION TREAD™, GRATE-LOCK® and DIAMONDBACK®. If your application requires Fiberglass Grating Stair Treads, we carry Molded Stair Tread Panels, Molded Stair Tread Cover Panels as well as DURAGRID® Pultruded I-Bar Stair Tread Panels in stock and ready to go!
