McNICHOLS® Handrail Components

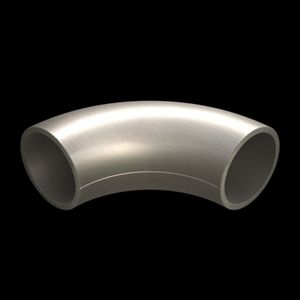

Weld-on, Elbow, Carbon Steel, Hot Rolled, 10 Gauge (.1345'' Thick), 90° Radius Bend Elbow, Fits 1-1/2'' Round Pipe (1.900'' Outside Diameter)

McNICHOLS® Handrail Components, Weld-On, Elbow, Radius Bend, Carbon Steel, Hot Rolled, Mill Finish, 10 Gauge (.1345" Thick), 90° Radius Bend Elbow with a Seam on Inside Radius, 2.950" Centerline Elbow Radius, 2.000" Inside Elbow Radius, 1.900" Outside Diameter, Fits 1-1/2" Round Pipe

ITEM WME535 - Each In-Stock! print icon

print icon
Please Request Quote



BUY THIS SIZE ONLINE
Please Request Quote




BUY THIS SIZE ONLINE
Please Request Quote

Item Number WME535
Product Line Handrail Components
Attachment Type Weld-On
Component Type Elbow
Bend Type Radius
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled (HR)
Material Finish Mill Finish
Wall Thickness 10 Gauge (.1345" Thick)
Component Profile 90° Radius Bend Elbow with Seam on Inside Radius
Inside Elbow Radius 2.000"
Centerline Elbow Radius 2.950"
Inside Diameter 1.610"
Outside Diameter 1.900"
Compatible With Fits 1-1/2" Rd Pipe with a 1.9" Outside Diameter
Weight 0.96 Lbs./Each
Product Form Each
CAD Drawings PDF - Download Now
DWG - Please Log In

Overview

McNICHOLS carries a large selection of Aluminum and Carbon Steel Handrail Components that attach to stair and platform handrail systems. Attachment types include Drive-On, Slip-On, and Weld-On, each having a variety of Handrail Components to choose from. We are sure to have what you need to finish the look of your handrail system creation!
