McNICHOLS® Handrail Components

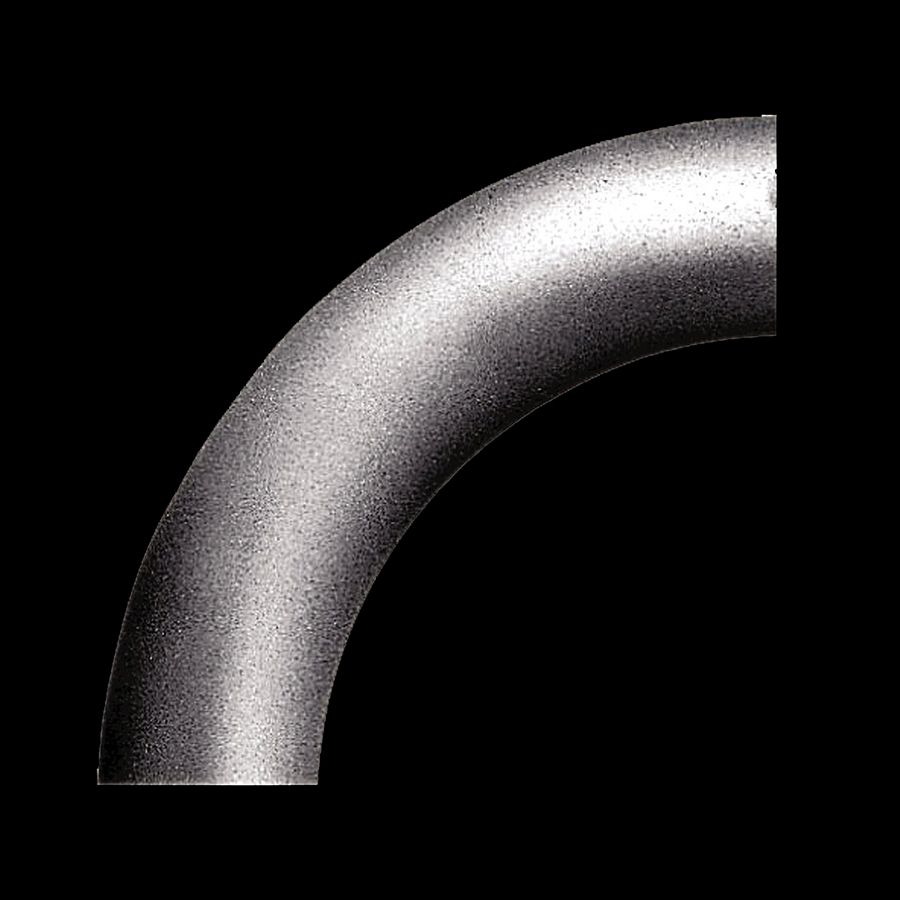

Weld-on, Elbow, Carbon Steel, Hot Rolled, 10 Gauge (.1345'' Thick), 90° Radius Bend Elbow, Fits 1-1/4'' Round Pipe (1.660'' Outside Diameter)

McNICHOLS® Handrail Components, Weld-On, Elbow, Radius Bend, Carbon Steel, Hot Rolled, Mill Finish, 10 Gauge (.1345" Thick), 90° Radius Bend Elbow with a Seam on Inside Radius, 2.833" Centerline Elbow Radius, 2.000" Inside Elbow Radius, 1.660" Outside Diameter, Fits 1-1/4" Round Pipe

ITEM WME435 - Each - In-Stock!

Please Request Quote

Qty

Subtotal

Qty

Subtotal

SPECIFICATIONS

Overview

Ordering

Charts

Tables

SPECIFICATIONS

Overview

Ordering

Charts

Tables

Specifications

Item Number WME435	WME435
Product Line Handrail Components	Handrail Components
Attachment Type Weld-On	Weld-On
Component Type Elbow	Elbow
Bend Type Radius	Radius
Primary Material Carbon Steel (CS)	Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled (HR)	Hot Rolled (HR)
Material Finish Mill Finish	Mill Finish
Wall Thickness 10 Gauge (.1345" Thick)	10 Gauge (.1345" Thick)

Component Profile 90° Radius Bend Elbow with Seam on Inside Radius	90° Radius Bend Elbow with Seam on Inside Radius
Inside Elbow Radius 2.000"	2.000"
Centerline Elbow Radius 2.833"	2.833"
Inside Diameter 1.391"	1.391"
Outside Diameter 1.660"	1.660"
Compatible With Fits 1-1/4" Round Pipe with a 1.660" Outside Diameter	Fits 1-1/4" Round Pipe with a 1.660" Outside Diameter
Weight 0.88 Lbs./Each	0.88 Lbs./Each
Product Form Each	Each

Overview

McNICHOLS carries a large selection of Aluminum and Carbon Steel Handrail Components that attach to stair and platform handrail systems. Attachment types include Drive-On, Slip-On, and Weld-On, each having a variety of Handrail Components to choose from. We are sure to have what you need to finish the look of your handrail system creation!

Ordering

Content coming soon!

Charts

These McNICHOLS® Handrail Components charts can be saved, printed, or shared!

Tables

Content currently unavailable.
