Pultruded, Wide T-Bar, MS-WT-3810 - DURAGRID®, Fiberglass, SPF Polyester Resin, Gray, 1.000" Height x 1.625" Top Flange Width Wide T-Bar, Medium Grit Surface, 38% Open Area

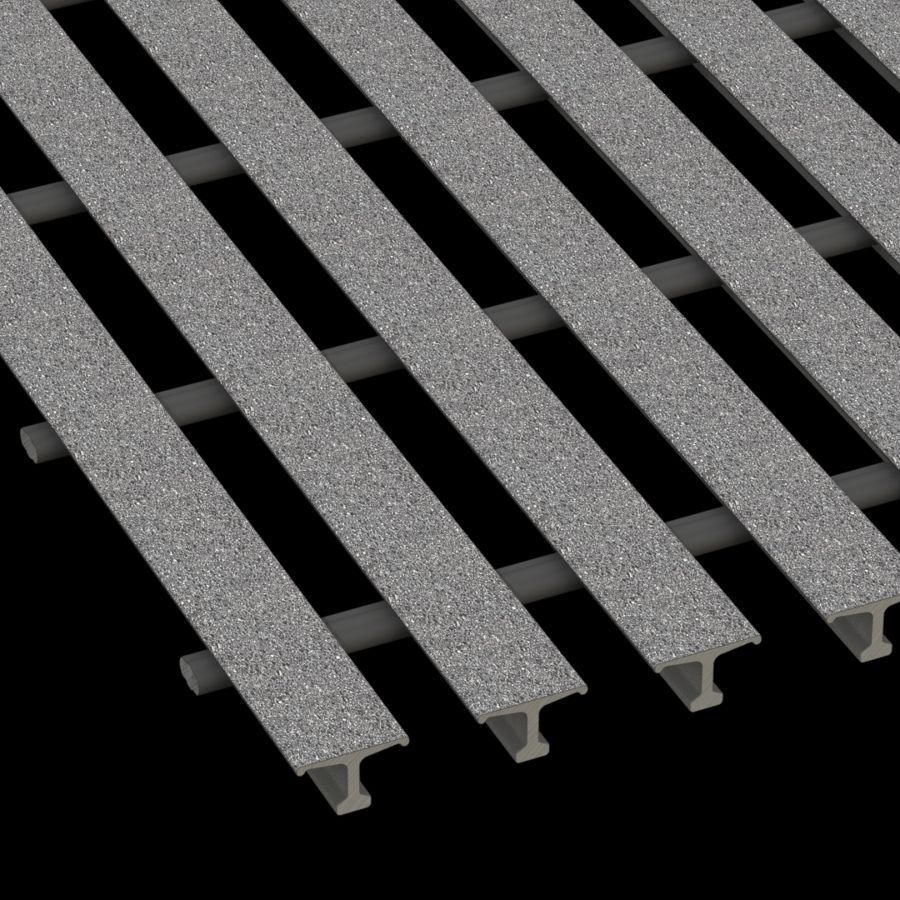

McNICHOLS® Fiberglass Grating, Pultruded, Wide T-Bar, MS-WT-3810 - DURAGRID®, Fiberglass, SPF Polyester Resin, Gray, 1.000" Height x 1.625" Top Flange Width Wide T-Bar Bearing Bars, Spaced 2.620" on Center with 0.995" Clear Space Between Bearing Bar Top Flanges, Medium Grit Surface, Bearing Bars Run Parallel to Length of Panel, Gray Cross-Rods Spaced 6" on Center, 38% Open Area

ITEM F138106S32 - 36.688" x 240"

Please Request Quote

Qty

Subtotal

Qty

Subtotal

SPECIFICATIONS

Overview

Ordering

Charts

Tables

SPECIFICATIONS

Overview

Ordering

Charts

Tables

Specifications

Item Number F138106S32	F138106S32
Product Line Fiberglass Grating	Fiberglass Grating
Construction Type Pultruded	Pultruded
Bearing Bar Shape Wide T-Bar	Wide T-Bar
Series Type & Name MS-WT-3810 - DURAGRID®	MS-WT-3810 - DURAGRID®
Primary Material Fiberglass (FG)	Fiberglass (FG)
Resin & Type SPF Polyester Resin (SPF)	SPF Polyester Resin (SPF)
Bearing Bar Color Gray	Gray
Bearing Bar Size & Shape 1.000" Height x 1.625" Top Flange Width Wide T-Bar	1.000" Height x 1.625" Top Flange Width Wide T-Bar
Bearing Bar Height 1.000"	1.000"
Bearing Bar Top Flange Width 1.625"	1.625"
Bearing Bar Vertical Width 0.180"	0.180"
Bearing Bar Bottom Flange Width 0.500"	0.500"
Bearing Bar Spacing 2.620" on Center	2.620" on Center
Clear Space Between Bearing Bar Top Flanges 0.995"	0.995"
Clear Space Between Vertical Portion of Bearing Bar 2.440"	2.440"

Clear Space Between Bearing Bar Bottom Flanges 2.120"	2.120"
Bearing Bars Per Foot of Width 4.58	4.58
Product Surface Medium Grit	Medium Grit
Bearing Bar Direction (Span) Parallel to Length of Panel	Parallel to Length of Panel
Cross-Rod Color Gray	Gray
Cross-Rod Size & Shape 5/8" Width x 1/4" Height Oval-Shaped Rod	5/8" Width x 1/4" Height Oval-Shaped Rod
Cross-Rod Spacing 6" on Center	6" on Center
Percent Open Area 38%	38%
UV Protection UV Resistant	UV Resistant
Fire Retardant Rated Yes	Yes
Flame Spread Rating Class A - Per ASTM E-84	Class A - Per ASTM E-84
Weight 2.10 Lbs./Square Foot	2.10 Lbs./Square Foot
Product Form Panel	Panel
CAD Drawings PDF - Download Now DWG - Please Log In	PDF - Download Now DWG - Please Log In
Sizes (Width x Length) 36.688" x 240" (Cut Sizes Available)	36.688" x 240" (Cut Sizes Available)
Load Table View	View

Overview

Fiberglass Grating is a lightweight and sound alternative to Steel or Aluminum Gratings. Corrosion-resistant and fire-retardant, this product line is ideal for use outdoors or in corrosive environments. McNICHOLS carries Molded FRP Gratings, including MINI-GRID® Molded Grating as well as DURADEK® and DURAGRID® Pultruded Grating construction types in a variety of sizes, resins, and colors. Most Fiberglass Grating has a slip-resistant, gritted surface to help prevent slips and falls.
