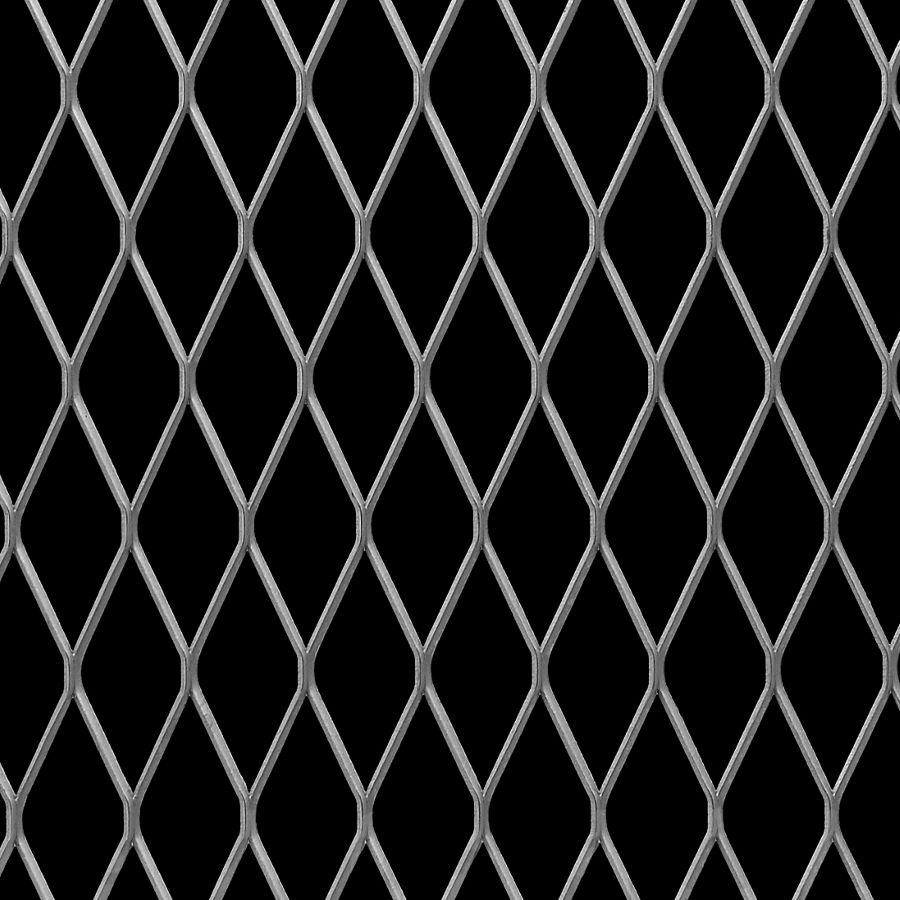

McNICHOLS® Expanded Metal

Standard, Carbon Steel, Cold Rolled, 3/4 #16 Standard, 80% Open Area
McNICHOLS® Expanded Metal, Standard, Carbon Steel, Cold Rolled, Mill Finish, 3/4 #16 Standard, 0.923" Short Way of Design (SWD), 2.000" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 80% Open Area

ITEM 4600341648 - 48" x 96"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 4600341648
Product Line Expanded Metal
Expanded Type Standard
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Cold Rolled (CR)
Material Finish Mill Finish
Style & Type 3/4 #16 Standard
Opening Size - Short Way of Opening (SWO) 0.811"
Opening Size - Long Way of Opening (LWO) 1.504"
Design Size - Short Way of Diamond (SWD) 0.923"
Design Size - Long Way of Diamond (LWD) 2.000"
Long Way of Opening (LWO) Parallel to Length of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 13.0
Diamonds per Foot - Long Way of Diamond (LWD) 6.0
Strand Thickness 0.055"
Strand Width 0.093"
Overall Thickness 0.180"
Percent Open Area 80%
Weight 0.46 Lbs./Square Foot
Product Form Sheet
Sizes (Width x Length) 48" x 96"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
