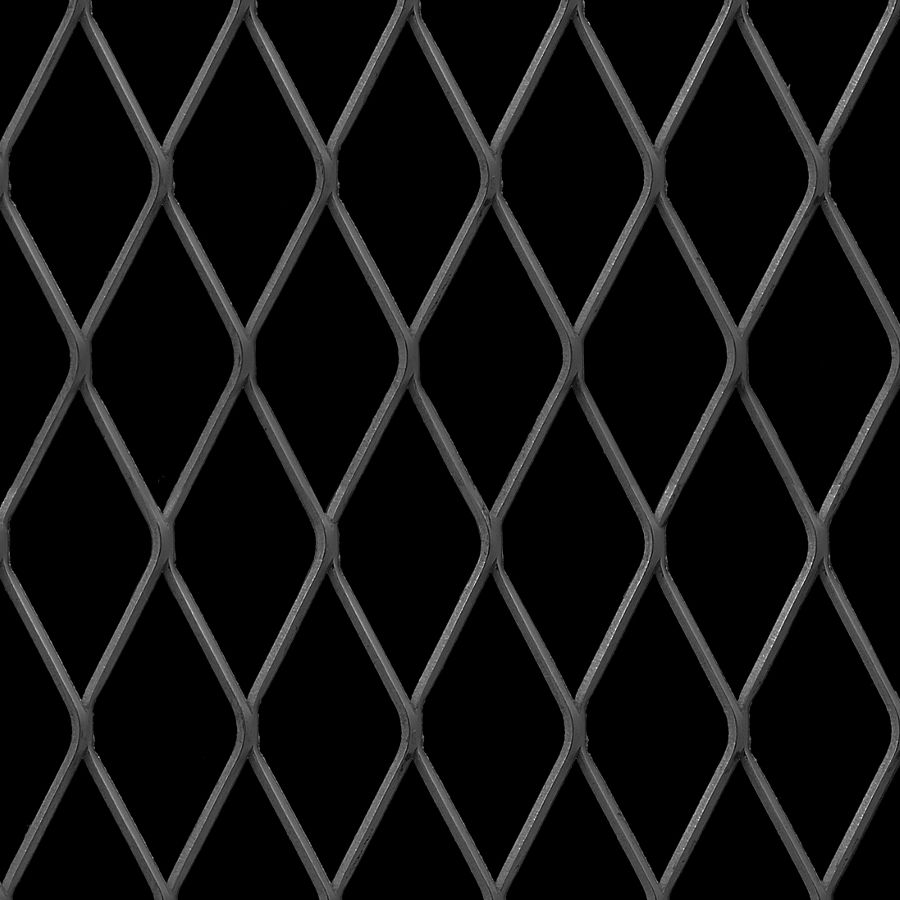

McNICHOLS® Expanded Metal

Standard, Carbon Steel, Hot Rolled, 1-1/2 #13 Standard, 85% Open Area
McNICHOLS® Expanded Metal, Standard, Carbon Steel, Hot Rolled, Mill Finish, 1-1/2 #13 Standard, 1.330" Short Way of Design (SWD), 3.000" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 85% Open Area

ITEM 4600151348 - 48" x 96"

Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 4600151348
Product Line Expanded Metal
Expanded Type Standard
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled (HR)
Material Finish Mill Finish
Style & Type 1-1/2 #13 Standard
Opening Size - Short Way of Opening (SWO) 1.276"
Opening Size - Long Way of Opening (LWO) 2.420"
Design Size - Short Way of Diamond (SWD) 1.330"
Design Size - Long Way of Diamond (LWD) 3.000"
Long Way of Opening (LWO) Parallel to Length of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 9.0
Diamonds per Foot - Long Way of Diamond (LWD) 4.0
Strand Thickness 0.086"
Strand Width 0.100"
Overall Thickness 0.220"
Percent Open Area 85%
Weight 0.52 Lbs./Square Foot
Product Form Sheet
Sizes (Width x Length) 48" x 96"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
