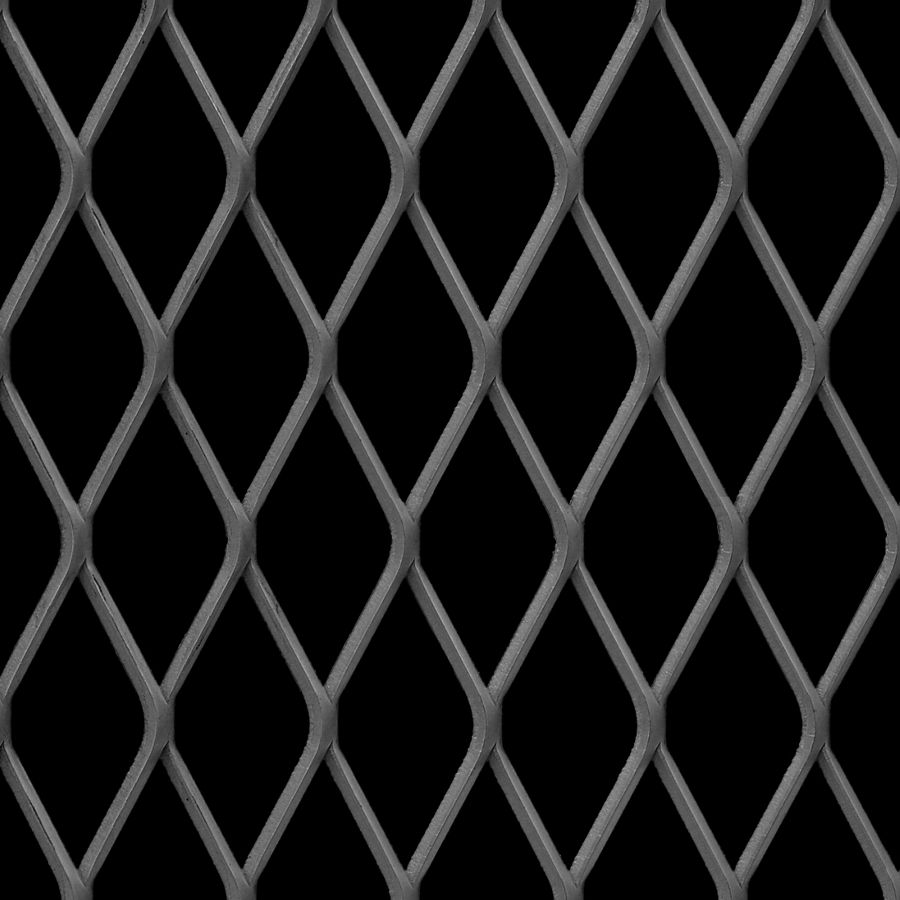

McNICHOLS® Expanded Metal

Standard, Carbon Steel, Hot Rolled, 1-1/2 #9 Standard, 80% Open Area
McNICHOLS® Expanded Metal, Standard, Carbon Steel, Hot Rolled, Mill Finish, 1-1/2 #9 Standard, 1.330" Short Way of Design (SWD), 3.000" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 80% Open Area

ITEM 4600150948 - 48" x 96"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 4600150948
Product Line Expanded Metal
Expanded Type Standard
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled (HR)
Material Finish Mill Finish
Style & Type 1-1/2 #9 Standard
Opening Size - Short Way of Opening (SWO) 1.121"
Opening Size - Long Way of Opening (LWO) 2.393"
Design Size - Short Way of Diamond (SWD) 1.330"
Design Size - Long Way of Diamond (LWD) 3.000"
Long Way of Opening (LWO) Parallel to Length of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 9.0
Diamonds per Foot - Long Way of Diamond (LWD) 4.0
Strand Thickness 0.128"
Strand Width 0.137"
Overall Thickness 0.270"
Percent Open Area 80%
Weight 1.09 Lbs./Square Foot
Product Form Sheet
Sizes (Width x Length) 48" x 96"; 48" x 120"; 72" x 96"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
