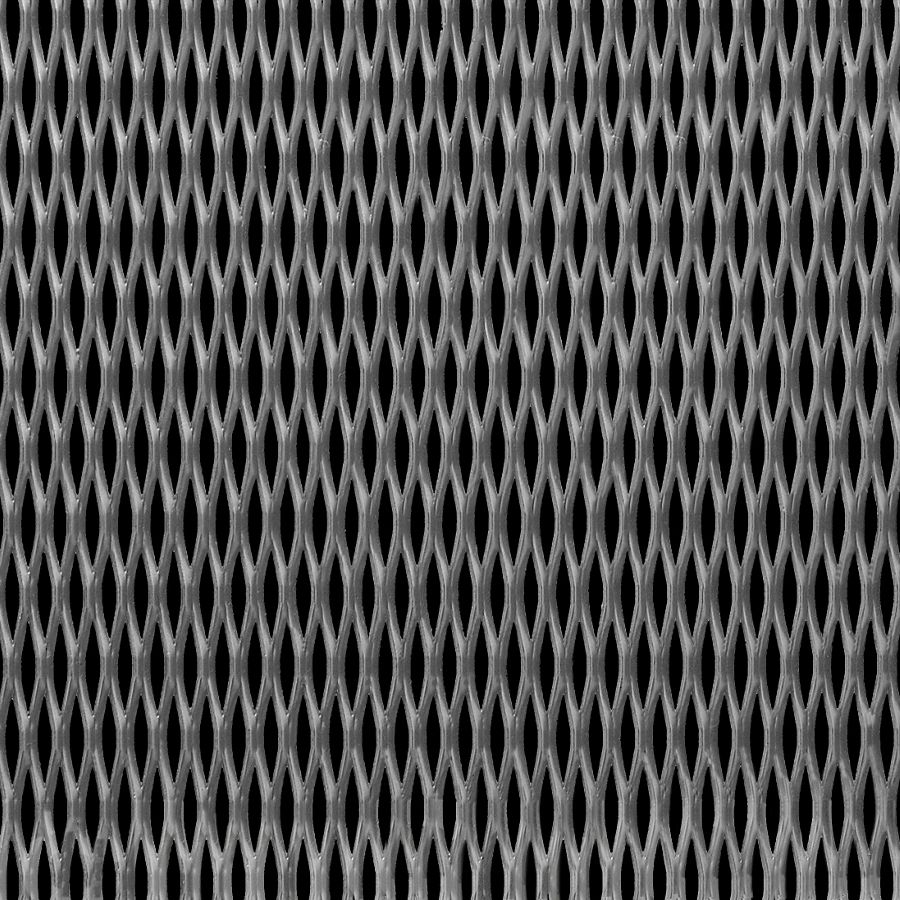

McNICHOLS® Expanded Metal

Standard, Carbon Steel, Cold Rolled, 1/4 #18 Standard, 54% Open Area
McNICHOLS® Expanded Metal, Standard, Carbon Steel, Cold Rolled, Mill Finish, 1/4 #18 Standard, 0.312" Short Way of Design (SWD), 1.000" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 54% Open Area

ITEM 4600141848 - 48" x 96"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 4600141848
Product Line Expanded Metal
Expanded Type Standard
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Cold Rolled (CR)
Material Finish Mill Finish
Style & Type 1/4 #18 Standard
Opening Size - Short Way of Opening (SWO) 0.192"
Opening Size - Long Way of Opening (LWO) 0.616"
Design Size - Short Way of Diamond (SWD) 0.312"
Design Size - Long Way of Diamond (LWD) 1.000"
Long Way of Opening (LWO) Parallel to Length of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 38.5
Diamonds per Foot - Long Way of Diamond (LWD) 12.0
Strand Thickness 0.044"
Strand Width 0.072"
Overall Thickness 0.140"
Percent Open Area 54%
Weight 0.84 Lbs./Square Foot
Product Form Sheet
Sizes (Width x Length) 48" x 96"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
