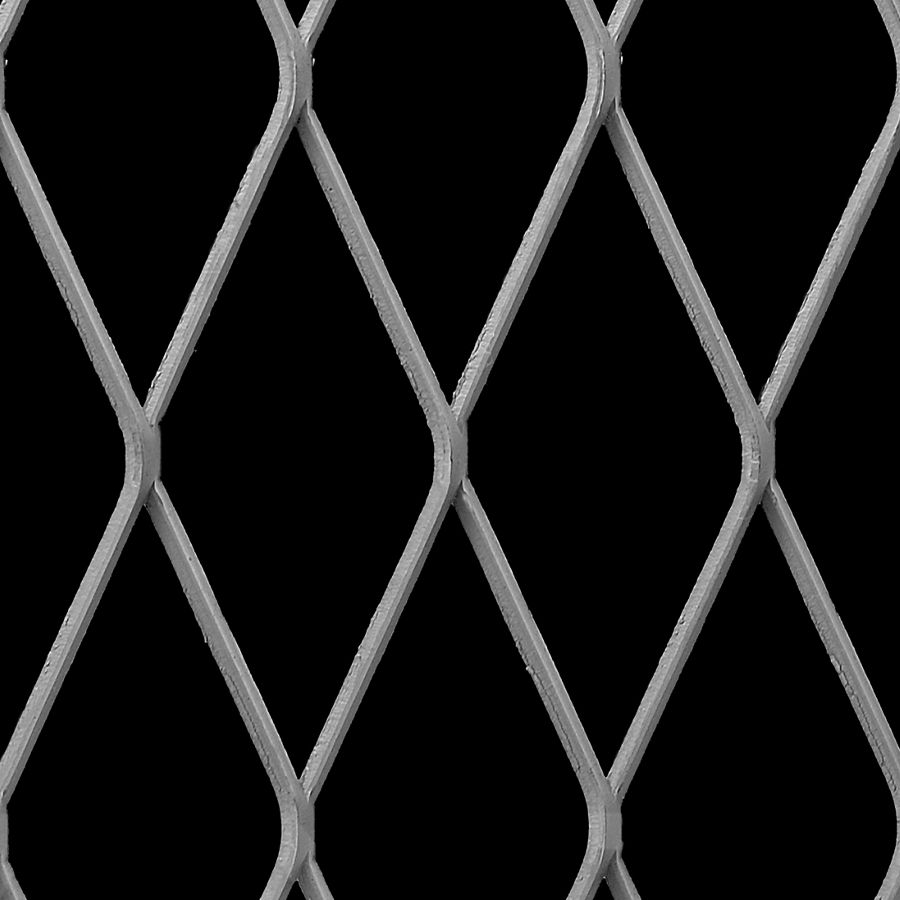

McNICHOLS® Expanded Metal

Standard, Carbon Steel, Hot Rolled, 2 #9 Standard, 82% Open Area
McNICHOLS® Expanded Metal, Standard, Carbon Steel, Hot Rolled, Mill Finish, 2 #9 Standard, 1.850" Short Way of Design (SWD), 4.000" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 82% Open Area

ITEM 4600020948 - 48" x 96"

Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 4600020948
Product Line Expanded Metal
Expanded Type Standard
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled (HR)
Material Finish Mill Finish
Style & Type 2 #9 Standard
Opening Size - Short Way of Opening (SWO) 1.563"
Opening Size - Long Way of Opening (LWO) 3.375"
Design Size - Short Way of Diamond (SWD) 1.850"
Design Size - Long Way of Diamond (LWD) 4.000"
Long Way of Opening (LWO) Parallel to Length of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 6.5
Diamonds per Foot - Long Way of Diamond (LWD) 3.0
Strand Thickness 0.128"
Strand Width 0.144"
Overall Thickness 0.270"
Percent Open Area 82%
Weight 0.81 Lbs./Square Foot
Product Form Sheet
Sizes (Width x Length) 48" x 96"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
