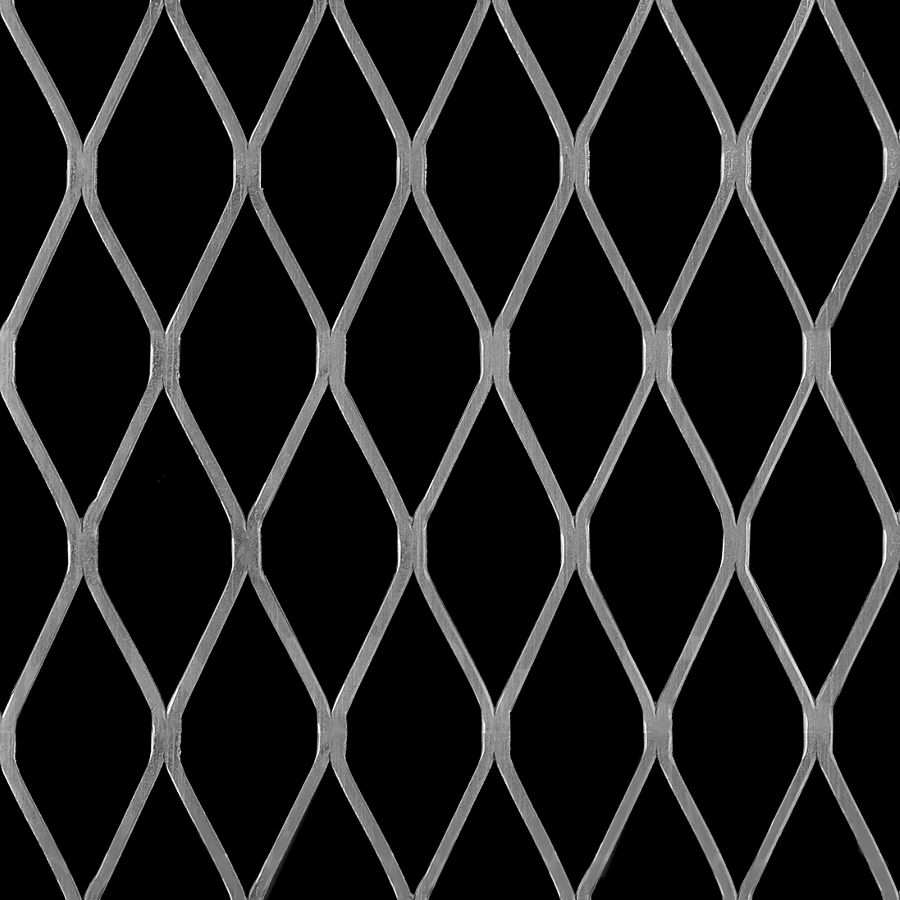

McNICHOLS® Expanded Metal

Flattened, Carbon Steel, Cold Rolled, 1-1/2 #16 Flattened, 85% Open Area
McNICHOLS® Expanded Metal, Flattened, Carbon Steel, Cold Rolled, Mill Finish, 1-1/2 #16 Flattened, 1.330" Short Way of Design (SWD), 3.200" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 85% Open Area

ITEM 5600151648 - 48" Width x 96" Length




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Product Line Expanded Metal
Expanded Type Flattened
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Cold Rolled (CR)
Material Finish Mill Finish
Style & Type 1-1/2 #16 Flattened
Opening Size - Short Way of Opening (SWO) 1.085"
Opening Size - Long Way of Opening (LWO) 2.564"
Design Size - Short Way of Diamond (SWD) 1.330"
Design Size - Long Way of Diamond (LWD) 3.200"
Long Way of Opening (LWO) Parallel to Length of Sheet
Strand Thickness 0.051"
Strand Width 0.110"
Overall Thickness 0.051"
Percent Open Area 85%
Weight 0.35 Lbs./Square Foot
Product Form Sheet
Sizes (Width x Length) 48" x 96"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
