McNICHOLS® Expanded Metal

Flattened, Carbon Steel, Hot Rolled, 1-1/2 #13 Flattened, 85% Open Area

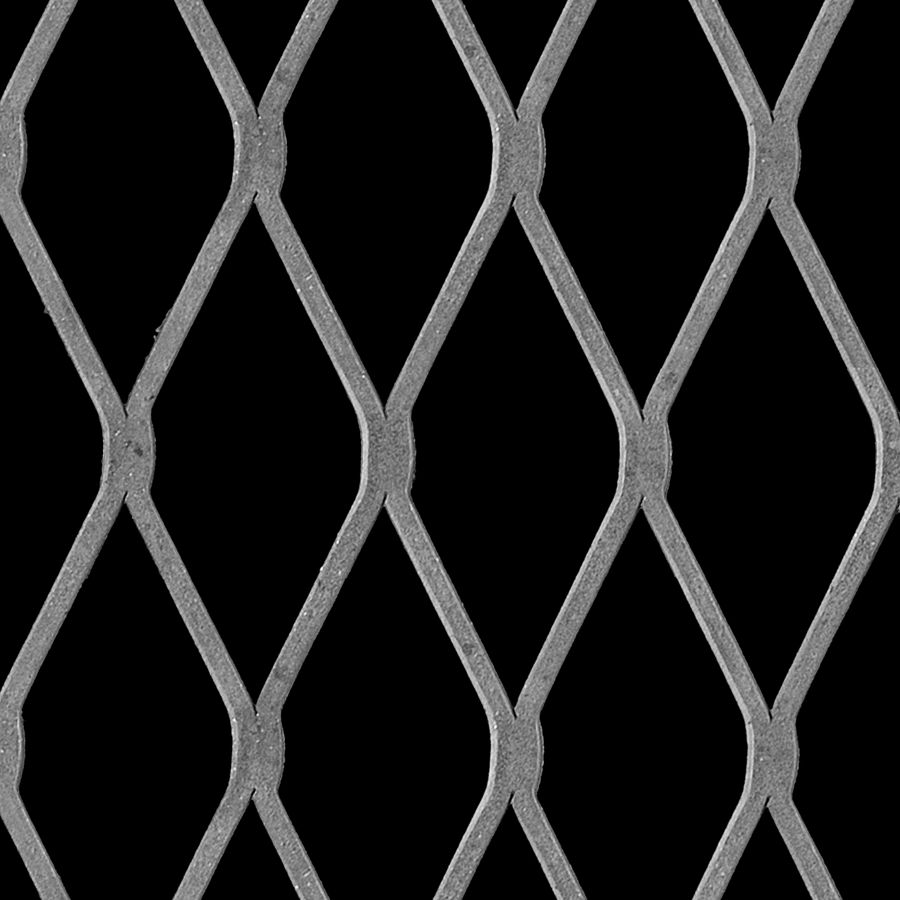

McNICHOLS® Expanded Metal, Flattened, Carbon Steel, Hot Rolled, Mill Finish, 1-1/2 #13 Flattened, 1.330" Short Way of Design (SWD), 3.200" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 85% Open Area

ITEM 5600151348 - 48" x 96"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 5600151348
Product Line Expanded Metal
Expanded Type Flattened
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled (HR)
Material Finish Mill Finish
Style & Type 1-1/2 #13 Flattened
Opening Size - Short Way of Opening (SWO) 1.090"
Opening Size - Long Way of Opening (LWO) 2.568"
Design Size - Short Way of Diamond (SWD) 1.330"
Design Size - Long Way of Diamond (LWD) 3.200"
Long Way of Opening (LWO) Parallel to Length of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 9.0
Diamonds per Foot - Long Way of Diamond (LWD) 3.8
Strand Thickness 0.077"
Strand Width 0.110"
Overall Thickness 0.077"
Percent Open Area 85%
Weight 0.51 Lbs./Square Foot
Product Form Sheet
Sizes (Width x Length) 48" x 96"; 48" x 120"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
