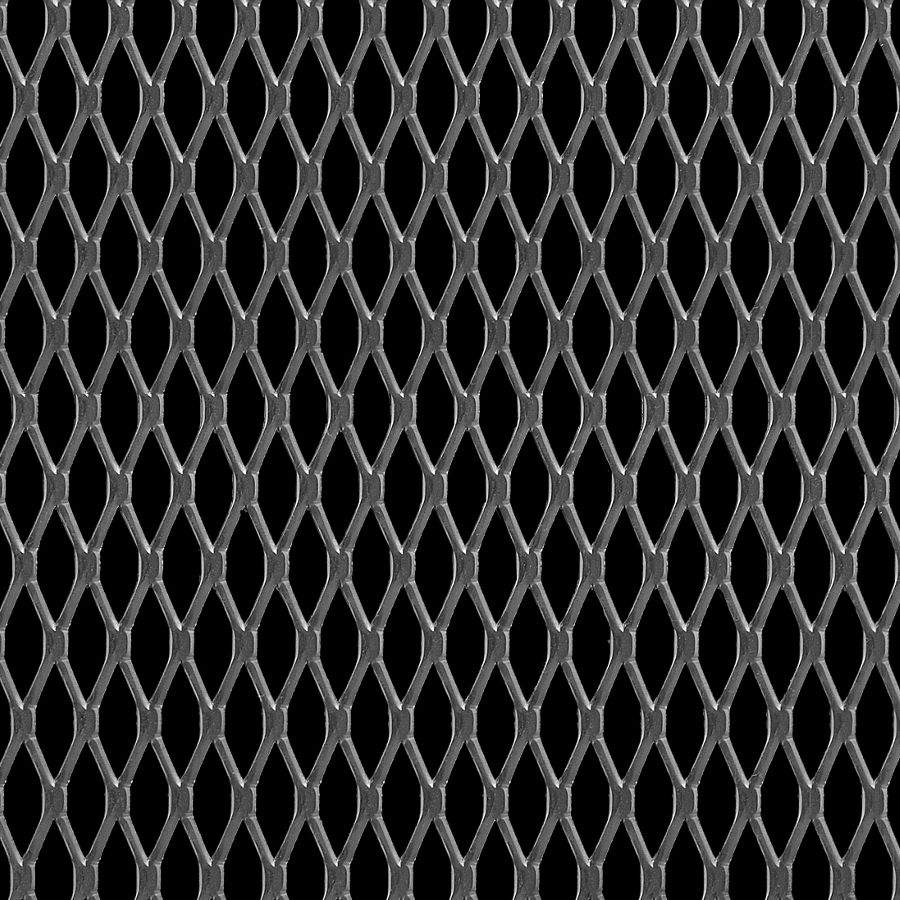

McNICHOLS® Expanded Metal

Flattened, Carbon Steel, Hot Rolled, 1/2 #13 Flattened, 64% Open Area
McNICHOLS® Expanded Metal, Flattened, Carbon Steel, Hot Rolled, Mill Finish, 1/2 #13 Flattened, 0.500" Short Way of Design (SWD), 1.250" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 64% Open Area

ITEM 5600121348 - 48" x 96"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 5600121348
Product Line Expanded Metal
Expanded Type Flattened
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled (HR)
Material Finish Mill Finish
Style & Type 1/2 #13 Flattened
Opening Size - Short Way of Opening (SWO) 0.290"
Opening Size - Long Way of Opening (LWO) 0.896"
Design Size - Short Way of Diamond (SWD) 0.500"
Design Size - Long Way of Diamond (LWD) 1.250"
Long Way of Opening (LWO) Parallel to Length of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 24.0
Diamonds per Foot - Long Way of Diamond (LWD) 9.6
Strand Thickness 0.077"
Strand Width 0.100"
Overall Thickness 0.077"
Percent Open Area 64%
Weight 1.19 Lbs./Square Foot
Product Form Sheet
Sizes (Width x Length) 48" x 96"; 48" x 120"; 60" x 120"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
