McNICHOLS® Decking & Flooring

Plate Flooring, TRACTION TREAD®, ADA, Carbon Steel, Hot Rolled, Button-Top (36" Width), 14 Gauge (.0747" Thick), Slip-Resistant Surface, 4% Open Area
McNICHOLS® Decking & Flooring, Plate Flooring, TRACTION TREAD®, ADA, Carbon Steel, Hot Rolled, Mill Finish, 14 Gauge (.0747" Thick), Button-Top (36" Width), Slip-Resistant Surface, ADA-Compliant Product, 4% Open Area

ITEM MP19501431 - 36" x 120"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number MP19501431
Product Line Decking & Flooring
Construction Type Plate Flooring
Series Type & Name Plate Flooring - TRACTION TREAD® - ADA
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled (HR)
Material Finish Mill Finish
Gauge/Thickness 14 Gauge (.0747" Thick)

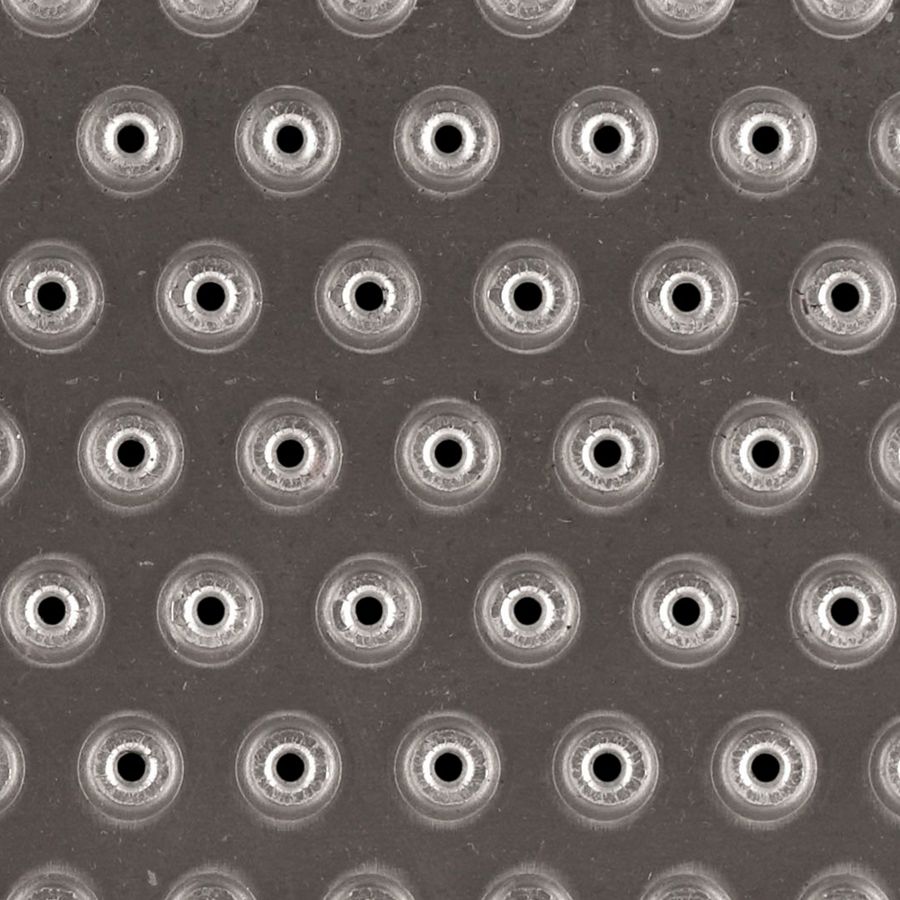

Surface Profile Button-Top (36" Width) TRACTION TREAD® Plate Flooring
Product Surface Slip-Resistant
ADA Compliant ADA-Compliant Product
Percent Open Area 4%
Weight 3.01 Lbs./Square Foot
Product Form Plate
Sizes (Width x Length) 36" x 120"
Load Table View

Overview

McNICHOLS carries a wide selection of Decking and Flooring Products with safe, slip-resistant surface properties for walkways, platforms, and other pedestrian travel applications. We carry four main Decking & Flooring product families—Extruded Interlocking Flooring, Overlapping Decking, Interlocking Plank Flooring and Plate Flooring. We stock several material types including Aluminum, Fiberglass, Carbon Steel and Stainless Steel.

Ordering

The following selections are important considerations to help you choose the right McNICHOLS® Decking & Flooring product for your project or application. Please specify:

1

Application

Consider Decking and Flooring applications/uses and physical requirements for your interior or exterior application. Loading, span and support needs as well as traffic requirements such as pedestrian or hand cart, etc. are important considerations. All of our Decking and Flooring products comply with the Americans with Disabilities Act (ADA) when installed to written standards. We invite you to browse Decking and Flooring applications in our Gallery.

2

Construction Type

Choose from our inventory of Overlapping Decking, Extruded Interlocking Flooring, Interlocking Plank Flooring or Plate Flooring construction types.

3

Series Type & Name

Specify the Decking or Flooring series type and name for your project. This includes the construction type and trade name of the product (e.g. TRACTION TREAD® Plate Flooring). All items comply with the Americans with Disabilities Act (ADA) standard and have this language indicated in each item description.

4

Primary Material / Product Finish

Select the primary material type including Aluminum, Carbon Steel, Fiberglass or Stainless Steel. Metal inventory is typically “mill finish” unless otherwise specified. We provide more information on Primary Material Types and Product Finishes in the links provided in the Overview section on the Decking & Flooring Resources landing page.

5

Resin & Type

If you are selecting a product with Fiberglass as the primary material, choose the resin and type for your application (SPF Polyester Resin). We provide more information on resins, types and descriptions in the link provided in the Charts section on the Decking & Flooring Resources landing page.

6

Color

If you product selection is a Fiberglass Decking or Flooring item, choose the preferred color for your application.

7

Material Guage / Thickness

Choose the material gauge number or thickness in inches for your Decking or Flooring product selection. Extruded products do not have an actual gauge due to the manufacturing process. These items are specified as an Extrusion.

8

Surface Profile / Product Height

Choose a surface profile for your application. A surface profile includes the type of surface (e.g. Solid, Vented, etc.) or the type of opening (e.g. Button-Top, etc.) and the width of the product measured in inches (e.g. Solid (24" Width), Button-Top (36" Width), etc.). Additionally, some items also require a product height selection.

9

Percent Open Area

Identify the percentage of open area (if applicable) desired in your Decking or Flooring product selection.

10

Product Size, Form & Quantity

Depending on your product selection, determine the number of Planks or Plates including cut-to-size pieces for your project.

11

Special Requirements

Specify any requirements such as fabrication, non-standard tolerances, etc.

12

Accessories

If your product selection is Extruded Interlocking Flooring, please specify the number of Bar Interlocks required for your application.

Load Tables

Helpful Decking & Flooring reference guides to save, print, or share!



Overlapping Decking - Fiberglass



Plate Flooring - Fiberglass



Plate Flooring - Aluminum with Aluminum Oxide Grit Coating



Plate Flooring - Carbon Steel with Aluminum Oxide Grit Coating



Extruded Interlocking Flooring - Aluminum
