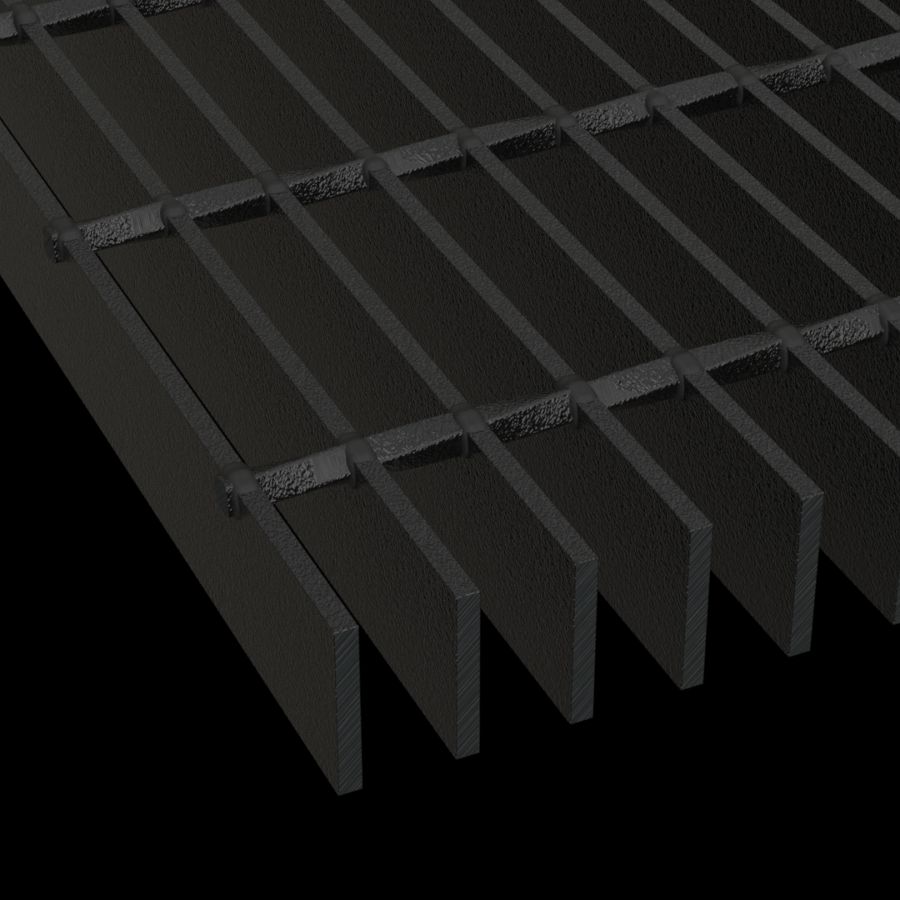

McNICHOLS® Bar Grating Standard-Duty Welded, Rectangular Bar, SGW-150, 15-W-4 Spacing, Carbon Steel, Hot Rolled - Powder Coated Black, 1-1/2" x 3/16" Rectangular Bar, Smooth Surface, 70% Open Area, 6202310532
Due to limitations and inconsistencies of digital displays, the rendering above is a representation of the raw materials. Actual products may differ slightly in appearance.
BUY THIS SIZE ONLINE
Please Request Quote

McNICHOLS® Bar Grating

Standard-Duty Welded, Rectangular Bar, SGW-150, 15-W-4 Spacing, Carbon Steel, Hot Rolled - Powder Coated Black, 1-1/2" x 3/16" Rectangular Bar, Smooth Surface, 70% Open Area

McNICHOLS® Bar Grating, Standard-Duty Welded, Rectangular Bar, SGW-150, 15-W-4 Spacing, Carbon Steel, Hot Rolled - Powder Coated Black, Mill Finish, 1-1/2" Height x 3/16" Thick Rectangular Bearing Bars, Spaced 15/16" on Center with 3/4" Clear Space Between Bearing Bars, Smooth Surface, Bearing Bars Run Parallel to Length of Panel, Cross Bars Spaced 4" on Center, 70% Open Area

ITEM 6202310532 - 36" x 240" print icon

print icon
Please Request Quote
print icon




BUY THIS SIZE ONLINE
Please Request Quote

print icon




BUY THIS SIZE ONLINE
Please Request Quote

print icon

SPECIFICATIONS

Overview

Ordering

Charts

Tables
SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 6202310532
Product Line Bar Grating
Construction Type Standard-Duty Welded
Bearing Bar Shape Rectangular Bar
Series Type & Name SGW-150 (15-W-4)
Product Spacing 15-W-4
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled - Powder Coated Black (HR-PCB)
Material Finish Mill Finish
Bearing Bar Size & Shape 1-1/2" Height x 3/16" Thick Rectangular Bar
Bearing Bar Height 1-1/2"
Bearing Bar Thickness 3/16"
Bearing Bar Spacing 15/16" on Center
Clear Space Between Bearing Bars 3/4"
Bearing Bars Per Foot of Width 12.8000
Product Surface Smooth
Bearing Bar Direction (Span) Parallel to Length of Panel
Cross Bar Size & Shape 1/4" Square Twisted Rod
Cross Bar Spacing 4" on Center
Percent Open Area 70%
Weight 13.70 Lbs./Square Foot
Product Form Panel
CAD Drawings PDF - Download Now
DWG - Please Log In
Sizes (Width x Length)
36" x 240" (Cut Sizes Available)
Load Table View

Overview

McNICHOLS® Bar Grating brings safety, strength, durability, and character when installed in either industrial or architectural applications. It regularly appears on catwalks, factory floors, platforms, railing infill panels, and as Stair Treads. A series of bearing bars are welded, swage-locked, or press-locked together with perpendicular crossbars to form the panels. Bar Grating is a rugged, high-performance, low-maintenance, and slip-resistant product capable of handling pedestrian or vehicular loads. Common material types include Aluminum, Carbon Steel, Powder Coated Carbon Steel, Galvanized Steel, and Stainless Steel. We also supply a hexagonally clinched product referred to as HEXMESH™ which is commonly used as a liner in concrete structural shapes to help prevent cracking. If your application requires ADA compliant Grating, CLOSE MESH (close space Grating) options are available in welded and press-locked construction types. Swage-Locked Aluminum SAFE-T-GRID® TB-940 Bar Grating is also a great ADA compliant choice. McNICHOLS has the nation’s largest selection of Bar Grating and is certain to have what you need for your application.

Ordering

The information provided below is your guide for choosing the right McNICHOLS® Bar Grating product for your project. Ordering information for McNICHOLS® Bar Grating Stair Treads is available by selecting the following link: Specifying & Ordering Bar Grating Stair Treads

1

Application

Consider Bar Grating uses and physical requirements for your interior or exterior application. Loading, span, and support needs as well as traffic requirements such as pedestrian, hand cart, and vehicular are important considerations. Several Bar Grating products comply with the Americans with Disabilities Act (ADA) when installed to written standards. We invite you to browse Bar Grating applications in our Product and Application Gallery.

2

Construction Type

Choose from Standard-Duty Welded, Heavy-Duty Welded, Swage-Locked, Press-Locked, or Clinched construction types.

3

Series Type & Name

Determine the series type and name (GW-100, GHB-150, GAL-125, etc.) of the Bar Grating product for your project. If applicable, items that comply with the Americans with Disabilities Act (ADA) standard will have this language indicated in the product's description and item specifications of the applicable product.

4

Product Spacing

Select the product spacing (the measurement from the center of one bearing bar to the center of an adjacent bearing bar) of the Bar Grating item. Product Spacing (e.g. 19-W-4) refers to the industry specification for Bar Grating products. For example, the first number refers to the bearing bar spacing measured on center (19 = 19/16" or 1-3/16"), the letter refers to the construction type (W = welded), and the last number references the cross bar spacing measured on center (4 = 4").

5

Primary Material / Product Finish

Select the primary material type including Aluminum, Carbon Steel, Galvanized Steel, or Stainless Steel. Inventory is typically "mill finish" for Aluminum, Carbon Steel, and Stainless Steel. Hot-Dipped Galvanized, Powder Coated Black, or Powder Coated Gray finishes are available for some Carbon Steel items. We provide more information on Primary Material Types and Product Finishes in the links provided in the Overview section on the Bar Grating Resources landing page.

6

Bearing Bar Size & Shape

Choose the bearing bar height and thickness (e.g. 1-1/4" Height x 3/16" Thick) and the shape (Rectangular Bar, I-Bar, or T-Bar).

7

Product Surface

Determine if your application requires a smooth, serrated, or grooved product surface.

8

Percent Open Area

Choose the percentage of open area desired in the panel or pieces of Bar Grating.

9

Span

Choose the direction the bearing bars need to run to support the application load. Bearing bar direction is often referred to as span. Clear Span refers to the distance between Bar Grating supports. Bearing bar direction is an important installation consideration.

10

Product Size, Form, & Quantity

Identify the number of panels (width and length) and/or sizes (cut-to-size pieces, areas, stair treads) and cut types (random, uniform, equal stub). Areas exceeding standard panel widths are provided in multiple pieces to width.

11

Special Requirements

Specify any requirements such as fabrication, banding, notching, cut-outs, toeboards, Stair Treads, non-standard tolerances, etc.

12

Accessories

Determine if Bar Grating Accessories like Clips or Fasteners/Hardware, Carrier Plates, etc. are needed for your project or application.

Tables

Helpful McNICHOLS® Bar Grating load tables to save, print, or share!

Standard-Duty Welded - Carbon Steel & Galvanized Steel
Standard-Duty Welded - Stainless Steel
Heavy-Duty Welded - Carbon Steel & Galvanized Steel
Swage-Locked - Aluminum
Press-Locked - Aluminum
Press-Locked - Carbon Steel & Galvanized Steel
