  4. McNICHOLS® Accessories Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, .1875" Thick (3/16" Gauge), CP-PG-930 Plank Grating Stair Tread Carrier Plates - Pair (3-3/32" Height x 9" Width), 3/16" Deep Shelf 1-1/2" from Top Edge of Carrier Plate
McNICHOLS® Accessories Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, .1875" Thick (3/16" Gauge), CP-PG-930 Plank Grating Stair Tread Carrier Plates - Pair (3-3/32" Height x 9" Width), 3/16" Deep Shelf 1-1/2" from Top Edge of Carrier Plate, T0CP930999
McNICHOLS® Accessories Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, .1875" Thick (3/16" Gauge), CP-PG-930 Plank Grating Stair Tread Carrier Plates - Pair (3-3/32" Height x 9" Width), 3/16" Deep Shelf 1-1/2" from Top Edge of Carrier Plate, T0CP930999

McNICHOLS® Accessories

Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, .1875" Thick (3/16" Gauge), CP-PG-930 Plank Grating Stair Tread Carrier Plates - Pair (3-3/32" Height x 9" Width), 3/16" Deep Shelf 1-1/2" from Top Edge of Carrier Plate

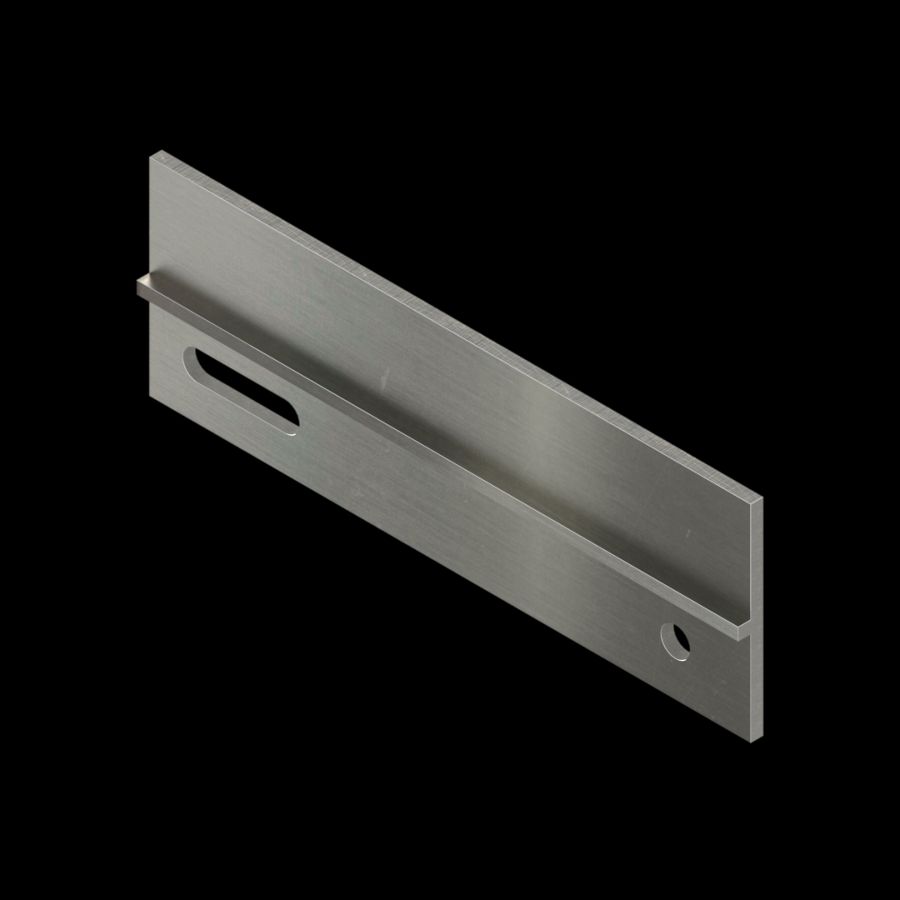

McNICHOLS® Accessories, Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, Mill Finish, .1875" Thick (3/16" Gauge), CP-PG-930 Plank Grating Stair Tread Carrier Plates - Pair (3-3/32" Height x 9" Width), 3/16" Deep Shelf 1-1/2" from Top Edge of Carrier Plate, Punched with a Mounting Slot and Bolt Hole, Carrier Plates are designed to be Welded to Extruded Plank Ends Perpendicular to Extruded Stair Tread Length (Span), Fits Aluminum Diamond-Vented (9" Width) DIAMONDBACK® Extruded Stair Tread Plank Grating with a 1-1/2" Channel Depth

ITEM T0CP930999 - Pair




Please Request Quote
To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number T0CP930999
Product Line Accessories
Accessory Type Carrier Plates - Plank Grating
Primary Material Aluminum (AL)
Alloy, Grade or Type Aluminum Alloy (ALALLY)
Material Finish Mill Finish
Gauge/Thickness .1875" Thick (3/16" Gauge)
Accessory Profile CP-PG-930 Plank Grating Stair Tread Carrier Plates - Pair (3-3/32" Height x 9" Width), 3/16" Deep Shelf 1-1/2" from Top Edge of Carrier Plate, Punched with a Mounting Slot and Bolt Hole
Height 3-3/32"
Width 9"
Top Edge of Shelf to Top Edge of Carrier Plate 1-1/2"
Shelf Width 3/16"
Shelf Height 3/16"
Gauge/Thickness + Shelf Width .3750" Thick (3/8" Gauge)
Btm Edge of Shelf to Btm Edge of Carrier Plate 1-13/32"
Slot Size (Width x Height) 1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"
Ctr of Slot/Bolt Hole to Top Edge of Carrier Plate 2-11/32"
Ctr of Slot/Bolt Hole to Btm Edge of Shelf 21/32"
Ctr of Slot/Bolt Hole to Btm Edge of Carrier Plate 3/4"
Ctr of Slot to Ctr of Bolt Hole 6-1/2"
Ctr of Slot to Nearest Outside Edge 1-3/8"
Ctr of Bolt Hole to Nearest Outside Edge 1-1/8"
Compatible With Fits Aluminum Diamond-Vented (9" Width) DIAMONDBACK® Extruded Stair Tread Plank Grating with a 1-1/2" Channel Depth
Weight 3.20 Lbs./Pair
Product Form Pair
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Height x Width) 3-3/32" x 9"

Overview

McNICHOLS provides a wide selection of Accessories specifically for our product offerings, including Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging and more. Accessories complete Hole Product designs with a clean finish, minimal guesswork and optimal long-term results. Please allow us to start and finish your amazing design with McNICHOLS® Product Accessories!
