McNICHOLS® Accessories Carrier Plates - Bar Grating, Stainless Steel, Type 304, 3/16" Thick (.1875" Thick), CP-BG-1025 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 10-15/16" Width)

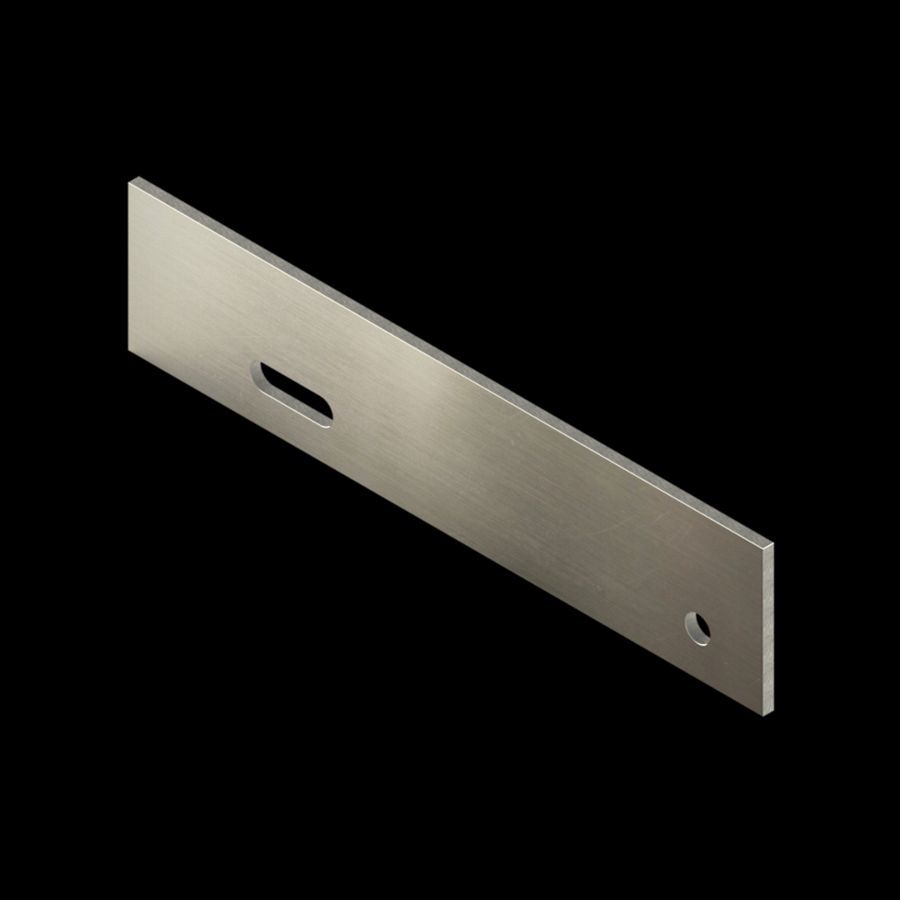

Due to limitations and inconsistencies of digital displays, the rendering above is a representation of the raw materials. Actual products may differ slightly in appearance.

McNICHOLS® Accessories

Carrier Plates - Bar Grating, Stainless Steel, Type 304, 3/16" Thick (.1875" Thick), CP-BG-1025 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 10-15/16" Width)

McNICHOLS® Accessories, Carrier Plates - Bar Grating, Stainless Steel, Type 304, Mill Finish, 3/16" Thick (.1875" Thick), CP-BG-1025 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 10-15/16" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are designed to be Welded to Open Bearing Bar Ends (and Optional Nosing) Perpendicular to Stair Tread Length (Span), Fits Stainless Steel Bar Grating with 1" Height x 3/16" Thick Rectangular Bearing Bars and 1-1/4" Height x 3/16" Thick Rectangular Bearing Bars

ITEM 6080311099 - 2-1/2" x 10-15/16" - In-Stock!

Please Request Quote

Qty

Subtotal

Qty

Subtotal

SPECIFICATIONS

Overview

Ordering

Charts

Tables

SPECIFICATIONS

Overview

Ordering

Charts

Tables

Specifications

Item Number 6080311099	6080311099
Product Line Accessories	Accessories
Accessory Type Carrier Plates - Bar Grating	Carrier Plates - Bar Grating
Primary Material Stainless Steel (SS)	Stainless Steel (SS)
Alloy, Grade or Type Type 304 (304)	Type 304 (304)
Material Finish Mill Finish	Mill Finish
Thickness 3/16" Thick (.1875" Thick)	3/16" Thick (.1875" Thick)
Accessory Profile CP-BG-1025 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 10-15/16" Width), Punched with a Mounting Slot and Bolt Hole	CP-BG-1025 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 10-15/16" Width), Punched with a Mounting Slot and Bolt Hole
Height 2-1/2"	2-1/2"
Width 10-15/16"	10-15/16"
Slot Size (Width x Height) 1-7/16" x 7/16"	1-7/16" x 7/16"

Bolt Hole Size (Diameter) 7/16"	7/16"
Ctr of Slot/Bolt Hole to Top Edge 1-3/4"	1-3/4"
Ctr of Slot/Bolt Hole to Btm Edge 3/4"	3/4"
Ctr of Slot to Ctr of Bolt Hole 7"	7"
Ctr of Slot to Nearest Outside Edge 2-3/16"	2-3/16"
Ctr of Bolt Hole to Nearest Outside Edge 1-1/8"	1-1/8"
Compatible With Fits Stainless Steel Bar Grating with 1" Height x 3/16" Thick Rectangular Bearing Bars and 1-1/4" Height x 3/16" Thick Rectangular Bearing Bars	Fits Stainless Steel Bar Grating with 1" Height x 3/16" Thick Rectangular Bearing Bars and 1-1/4" Height x 3/16" Thick Rectangular Bearing Bars
Weight 3.00 Lbs./Pair	3.00 Lbs./Pair
Product Form Pair	Pair
CAD Drawings PDF - Download Now DWG - Please Log In	PDF - Download Now DWG - Please Log In
Sizes (Height x Width) 2-1/2" x 10-15/16"	2-1/2" x 10-15/16"

Overview

McNICHOLS provides a wide selection of Accessories specifically for our product offerings, including Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging, and more. Accessories complete Hole Product designs with a clean finish, minimal guesswork, and optimal long-term results. Please allow us to start and finish your amazing design with McNICHOLS® Product Accessories!
